Comprehensive introduction to HOWO 26-ton heavy-duty hook loader

The HOWO hooklift garbage truck, also known as a HOWO hook lift bin truck or a HOWO hook loader truck, is a specialized sanitation vehicle that integrates garbage collection, transfer, and self-unloading functions. The HOWO 26 ton heavy hook loader is widely used for the collection, transportation, and unloading of bagged and bulk household waste and construction waste in urban areas, and can be equipped with multiple garbage containers.

HOWO 26-ton Hooklift Garbage Truck Technical Features

1. Built on HOWO 8×4 heavy duty chassis, with powerful performance and reliable durability.

2. The main structure of the upper body is welded with T710 high-strength alloy steel plates, featuring high strength and excellent corrosion resistance.

3. Advanced hydraulic control technology enables fast container loading and unloading actions.

4. Flexible and convenient operation, with both manual and electric control as standard configurations.

HOWO 8×4 hook loader parameters

Chassis	HOWO 8×4
Engine	WEICHAI 400HP, diesel engine
Lifting capacity	26 ton
Tipping angle	49º
Loading time	≤50S
Unloading time	≤50S
Container volume	25~30CBM

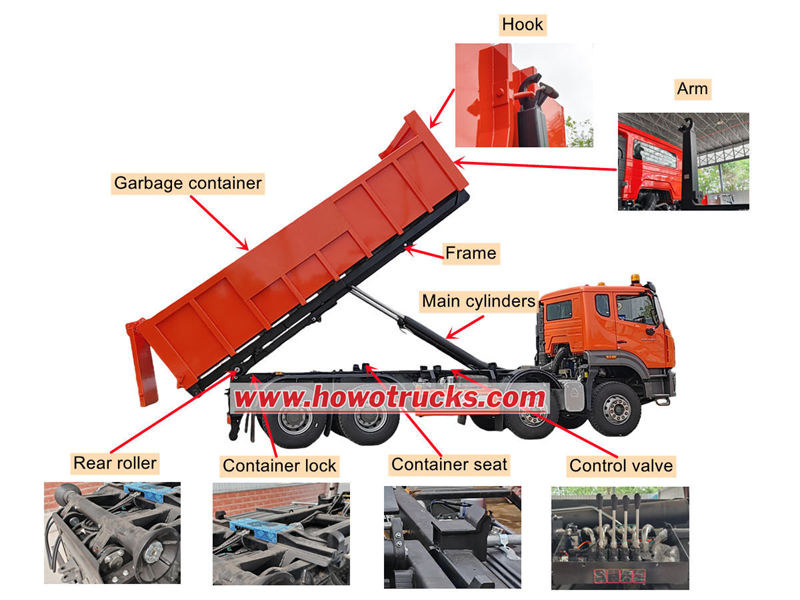

HOWO 8×4 Hook Loader Truck Structure Diagram

Advantages of the HOWO 26-ton hook-lift garbage truck:

1. The container can slide horizontally for a certain distance along the guide rails.
2. The horizontal sliding feature effectively lowers the center of gravity of the container during self-unloading and container loading/unloading operations.
3. It allows the mounting of containers with a wider range of lengths, thereby improving the vehicle's utilization efficiency.

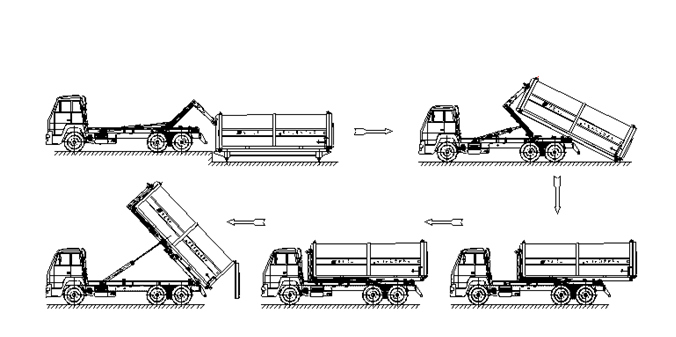

HOWO hook loader garbage truck workflow

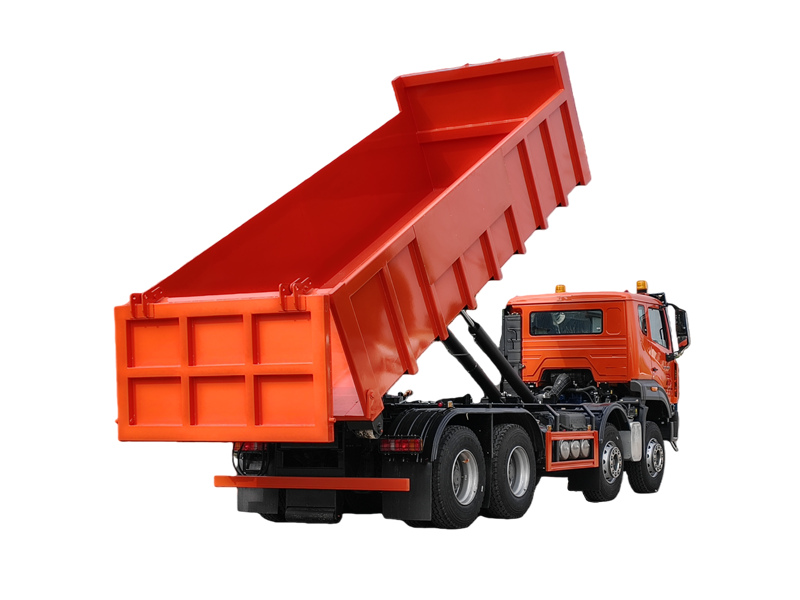

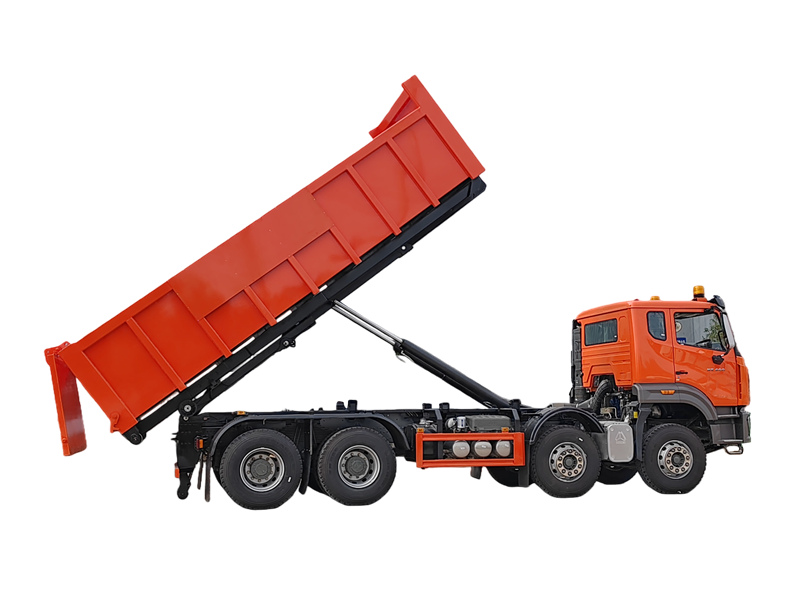

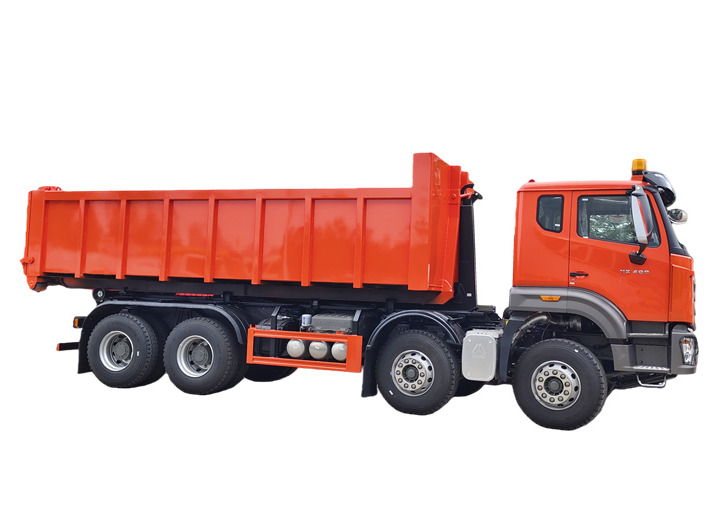

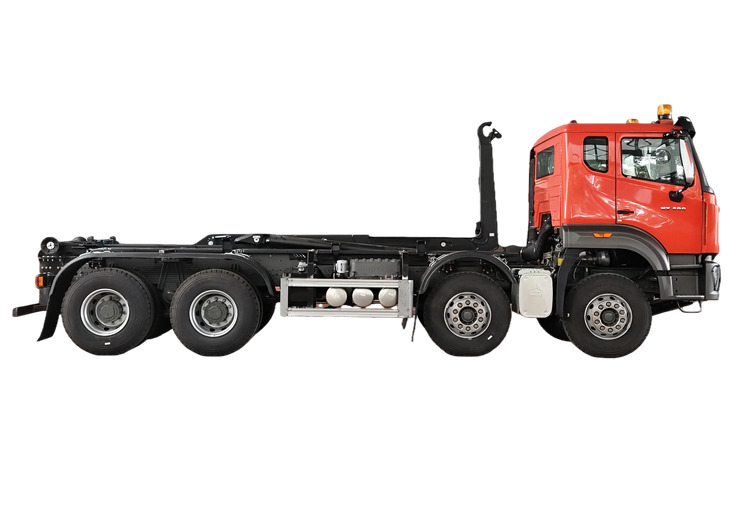

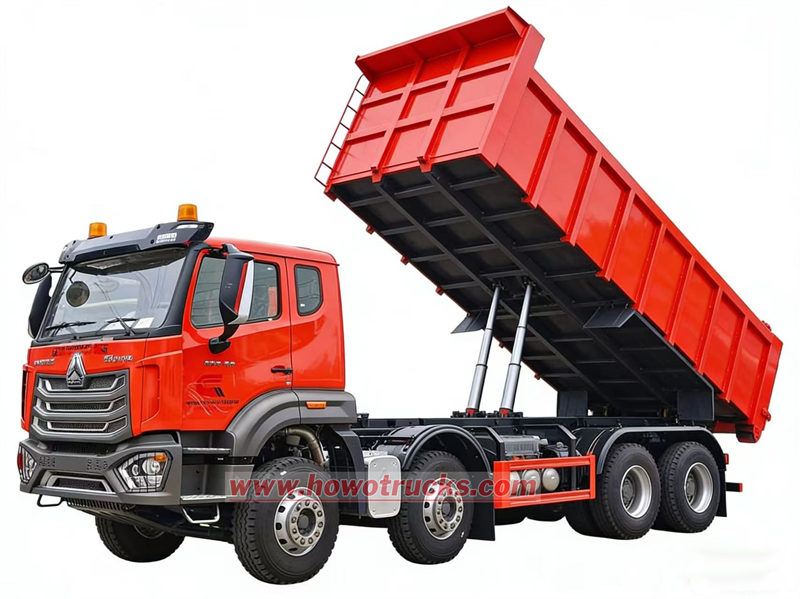

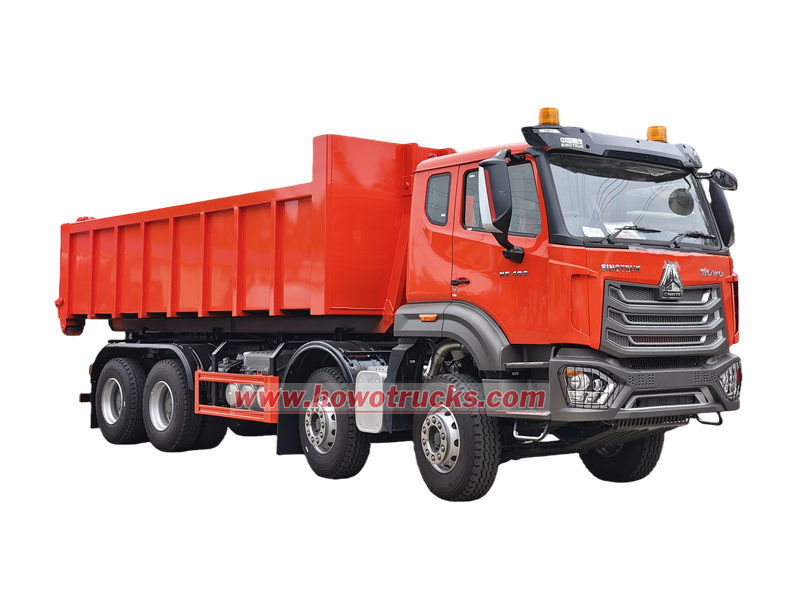

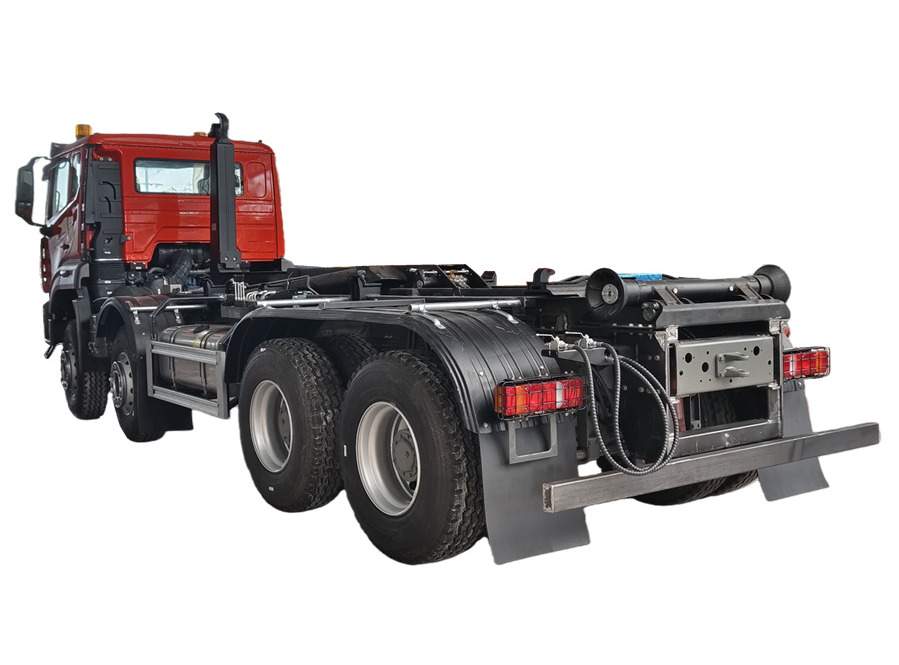

HOWO 8×4 Hook Lift Bin Lorry Display
