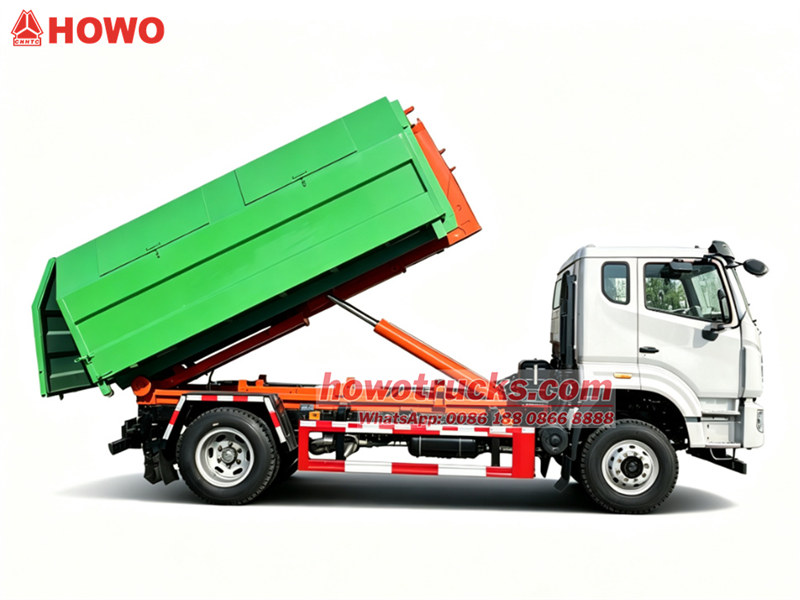

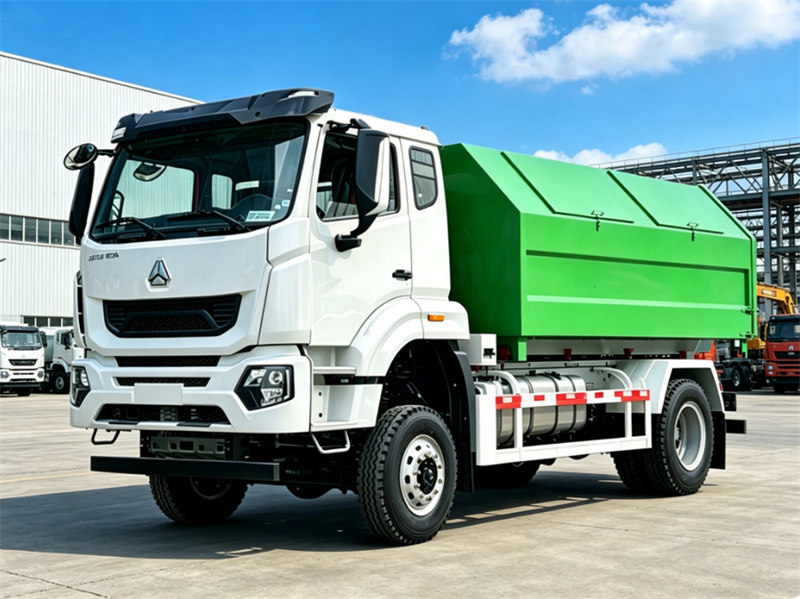

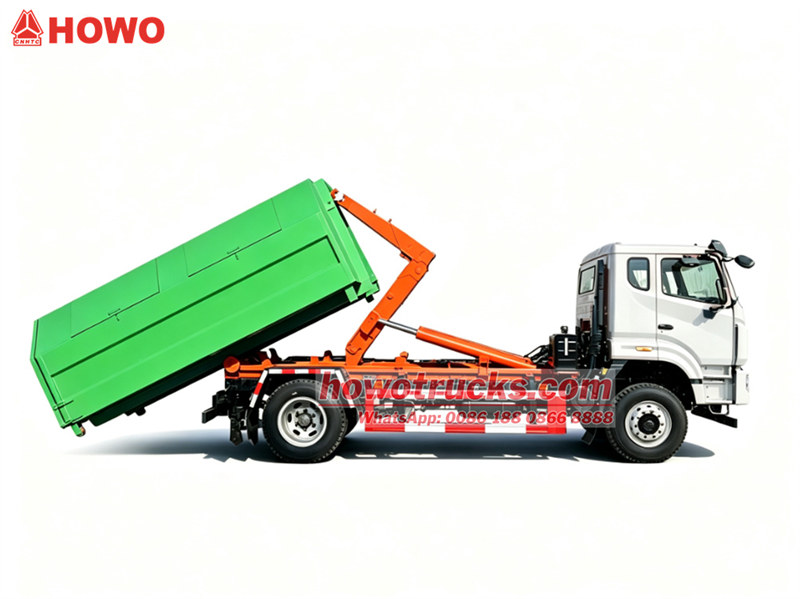

Name: HOWO M7 10 Ton Hook dumpster truck
Availability: InStock

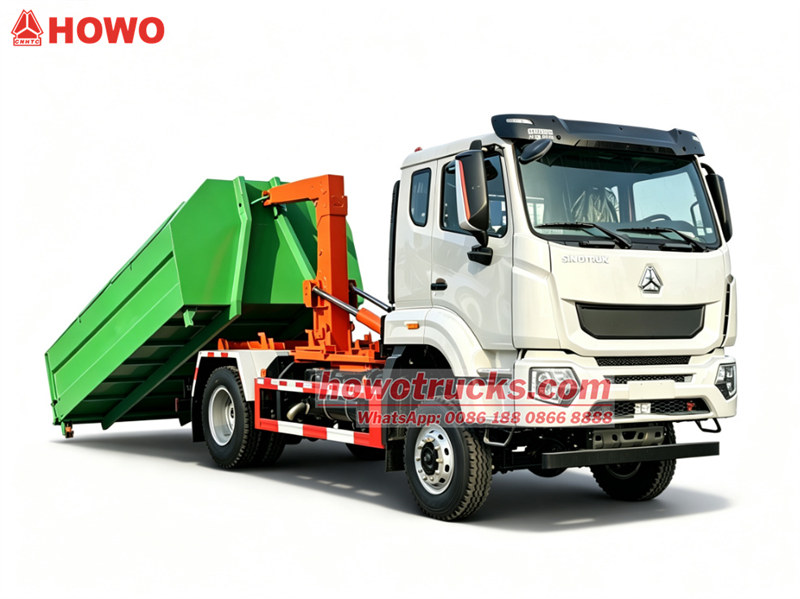

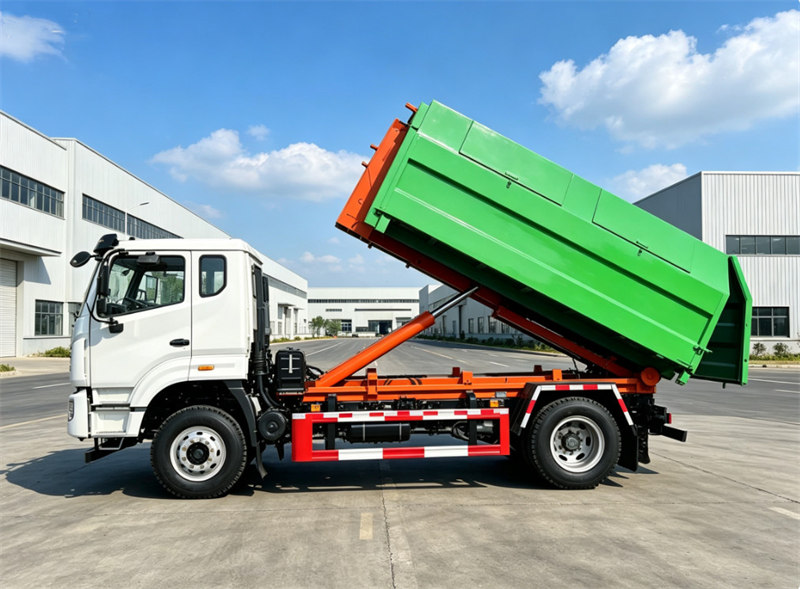

HOWO M7 10 Ton Hook dumpster truck

Built on the reliable HOWO chassis, the 220 HP roll off hook lift garbage truck is a mid range premium sanitation vehicle engineered for heavyduty waste transport. Designed around the “one truck, multiple containers” concept, it supports cyclic operations with various sealed bins for enclosed haulage of compacted municipal waste, bulk industrial and community refuse. Eliminating the limitations of conventional waste trucks, it streamlines collection, transportation and unloading workflows, cuts unnecessary trips to disposal sites and delivers outstanding efficiency for urban roads, industrial parks and large residential communities.

Иштөө жөндөмдүүлүгү :

10CBM

Кабина түрү :

HOWO TX double cabin

Айдоо системасы :

4x2

Дөңгөлөк базасы (мм) :

4700

Кыймылдаткычка тиешелүү :

220 Hp / YC6J220-331

Тиштүү кутуча :

8JS85TE,8 forwards & 2 reverses

Алдыңкы ок (кг) :

7500

Арткы ок (кг) :

13000*2

ПРОДУКЦИЯНЫН КАТЕГОРИЯЛАРЫ

Жаңы өнүмдөр

✦Ⅰ.Product Parameter For HOWO Hook Lift Truck «««

Best Choice,HOWO Trucks

⇓ ⇓ ⇓

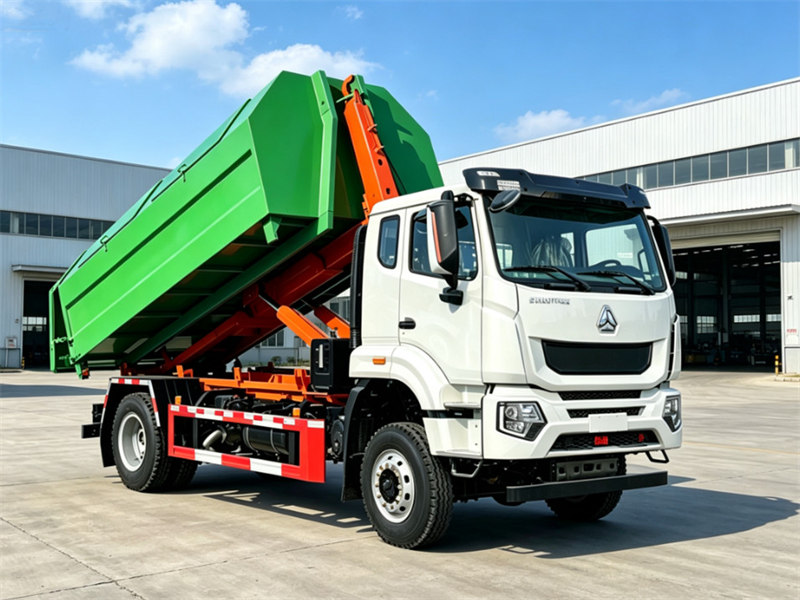

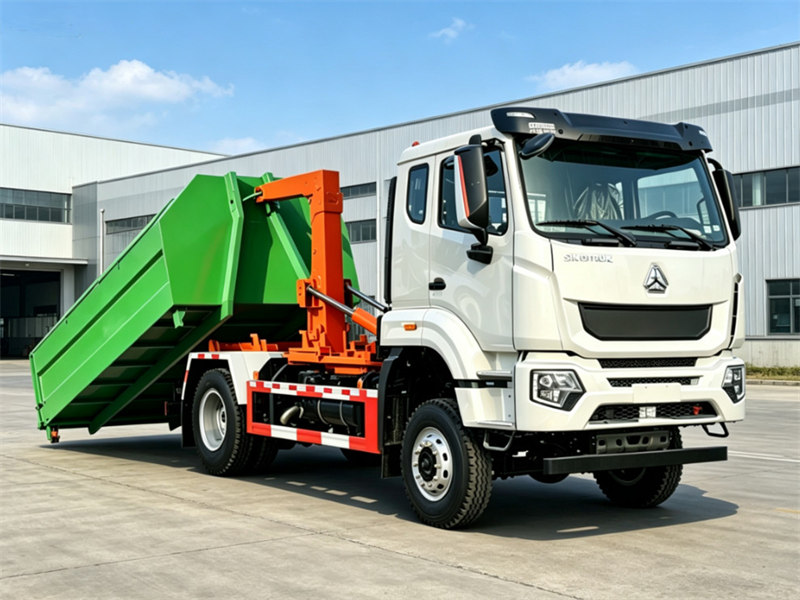

HOWO M7 10tons Hooklift Truck
Vehicle model		CS518303GBL
Dimension(L×W ×H)(unloaded)(mm)		830025503140mm
Garbage bucket capacity		10CBM
Approaching angle/Departure angle(°)		21/27
Wheel base (mm)		4700
Max speed(km/h)		105
GVW		18000kg
Curb weight(kg)		9500kg
Loading Weight(kg)		13 tons
Engine	Model	YC6J220-331,water-cooled,4 strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power	220HP
	Emission	EURO 3
	Displacement	6.494L
	Rated speed	2500 rpm
	Max.torque	800N·m
Fuel tanker capacity(L)		200L
Transmission	Model	8JS85TE 8 speed,manual
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Front axle	Steering with double T-cross section beam
Rear axle	Pressed axle housing, central double reduction with differential locks between axles and wheels
Cab	Configuration	HOWO M7 single row cab, with air conditioner, allowable 2 passengers, with ABS, with air suspension seat
Tyre	Size	10.00R20 Tire, With one spare tire
	Number	6+1 pcs
Electrical system	Battery	24V
	Alternator	28V-1500kw
LIFTING SYSTEM
Lift capacity	10 tons

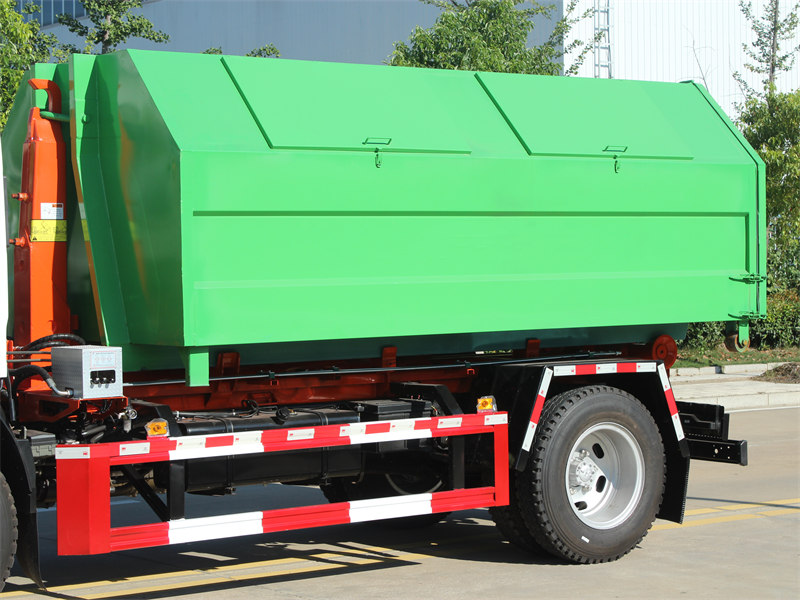

Garbage bin material	Carbon steel
Sidewalls	Sheet carbon steel (thickness: 5 mm)
Bottom	Sheet carbon steel (thickness: 6 mm)

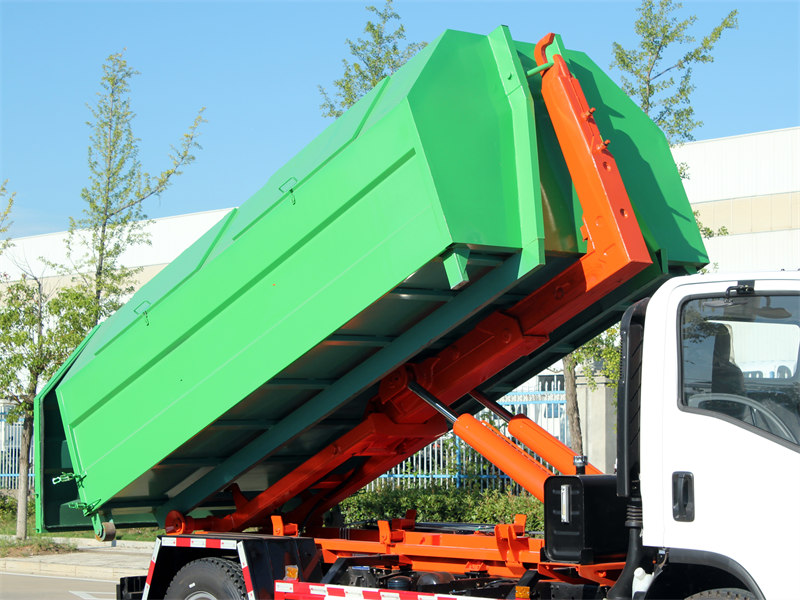

Discharge time	50S-55S
Discharge system	lifting/dump type
Max dump angle	45°
Hydraulic system pressure	16Mpa
Standard equipment	Hydraulic oil pump and operation valve, balance valve, hydraulic lock, main operation oil cylinder of hook arm, sliding oil cylinder of sleeve arm, hydraulic oil pipe , hydraulic oil tank, Hydraulic strengthen rear outrigger. Operation way: Manual and Wireless remote control operation. One dumper box,

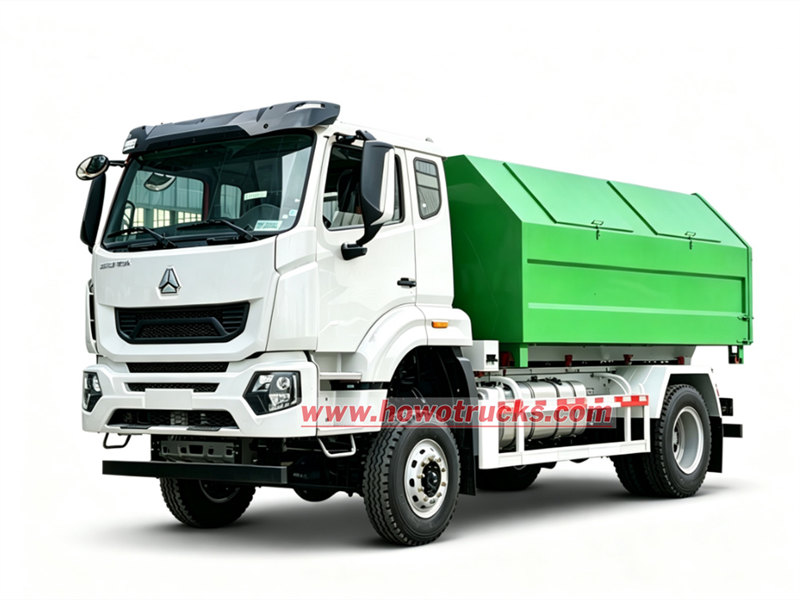

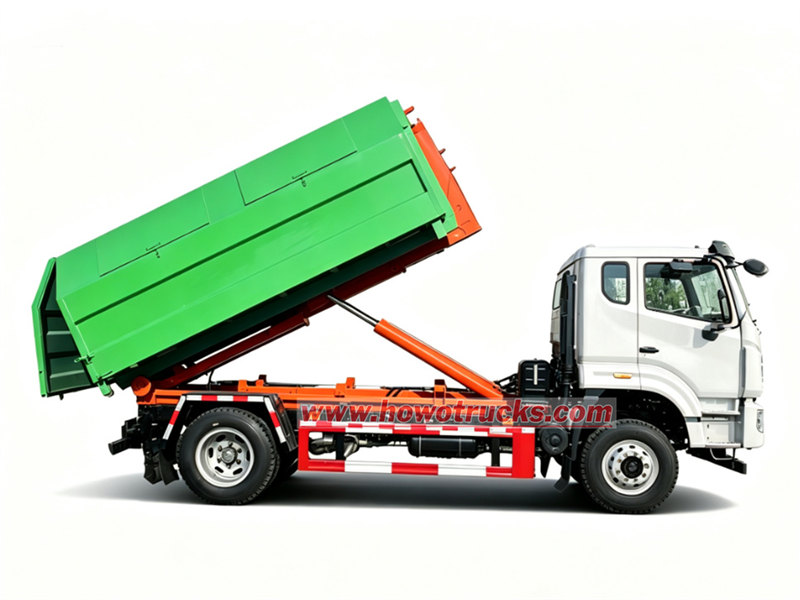

Howo garbage hook lift truck

✦Ⅱ.Structural Analysis for Hook Lift Upper Body «««

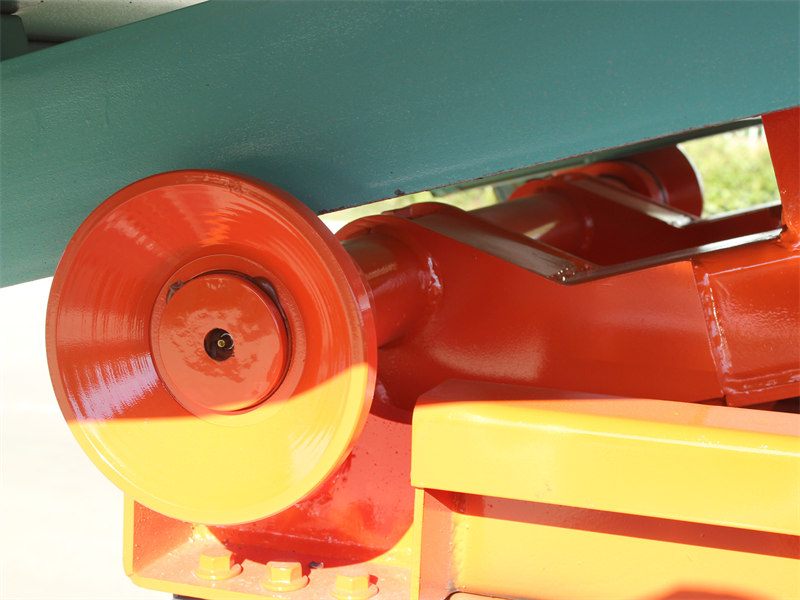

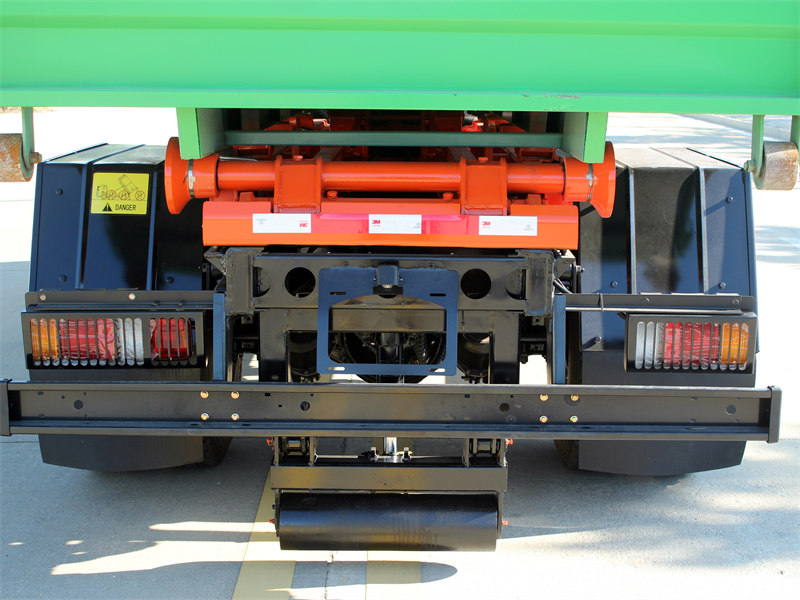

Behind the efficient performance of the HOWO M7 10 ton hooklift truck lies its mature power‑take‑off hydraulic system and robust hook‑arm mechanical assembly.

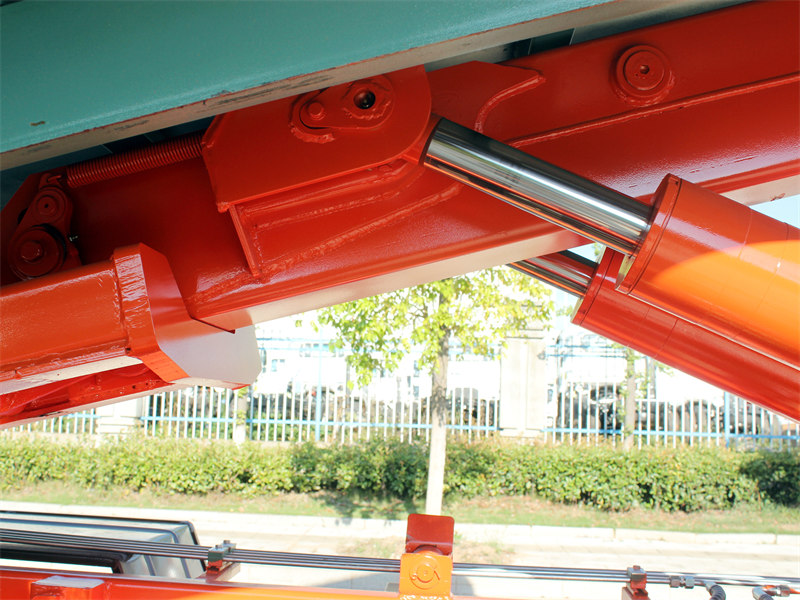

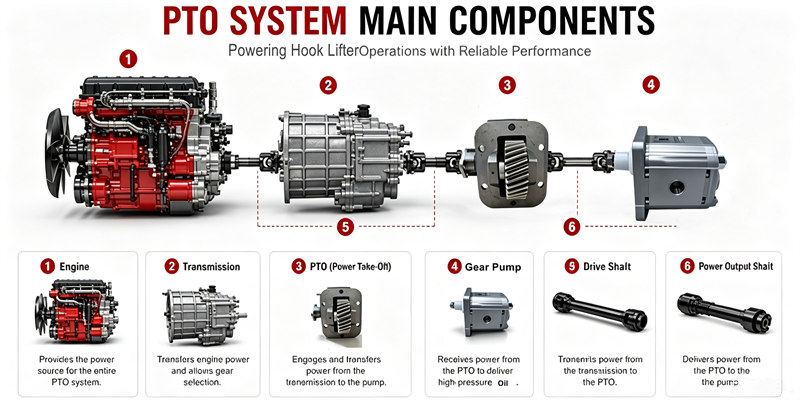

The PTO system transfers engine power through transmission, drive shafts and gear pump, delivering stable high‑pressure hydraulic power for all lifting and dumping movements. Meanwhile, the precision‑engineered hook‑arm structure, built with heavy‑duty cylinders, locking mechanisms and reinforced beams, completes container hooking, lifting and unloading reliably. Together these two core assemblies guarantee steady cyclic operation, fast 50‑55‑second discharge and long‑term durability under heavy‑load waste‑transfer conditions.

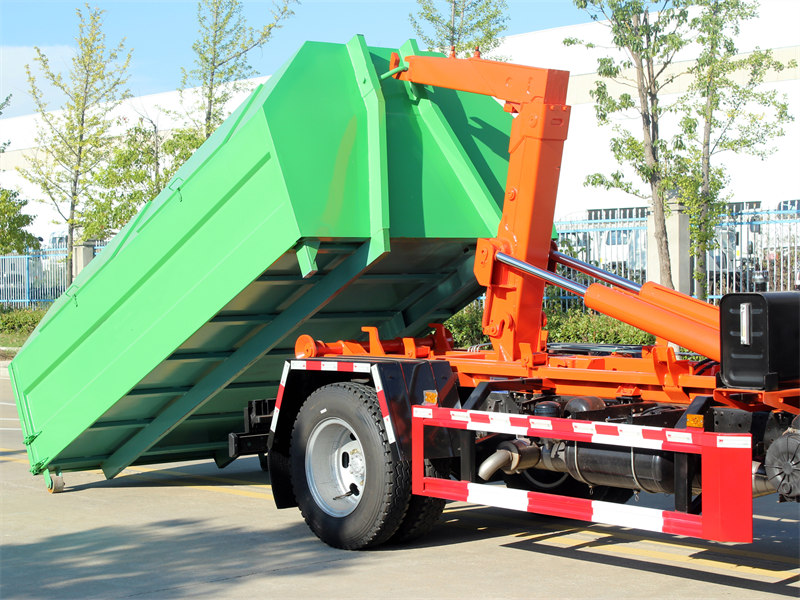

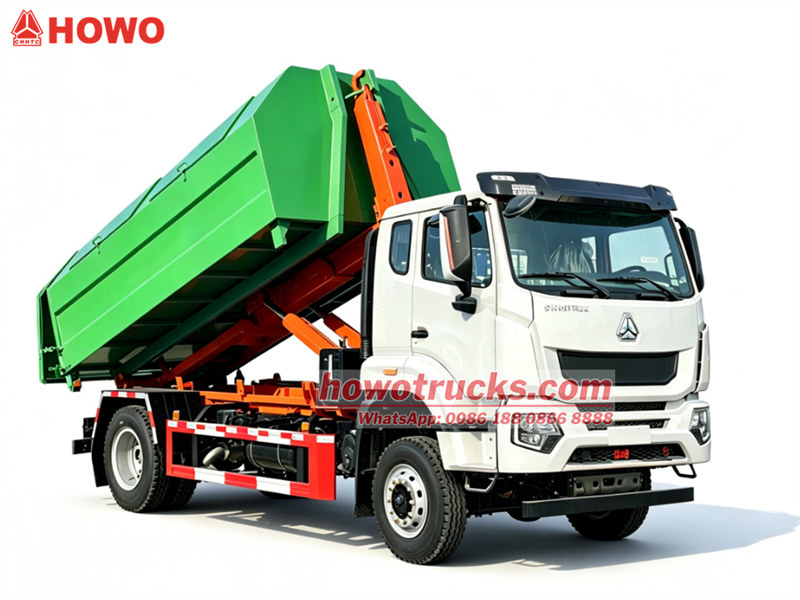

HOWO 10Ton roll on roll off dumpster truck

✦Ⅳ.Maintenance for HOWO Garbage Hook Lift Truck «««

This HOWO 220HP roll off hook lift truck delivers competitive long term maintenance costs. It adopts mature HOWO chassis components that are widely available globally for easy sourcing of spare parts. The hook lift upper body uses robust welded steel structures with proven hydraulic assemblies, featuring fewer vulnerable wearing parts.

Designed for heavy cyclic waste transfer tasks, it avoids overly complex custom components. With routine scheduled service, owners can keep repair expenses low. Compared with dedicated compact garbage trucks, it helps you cut overall operational expenditure for medium volume waste haulage.
